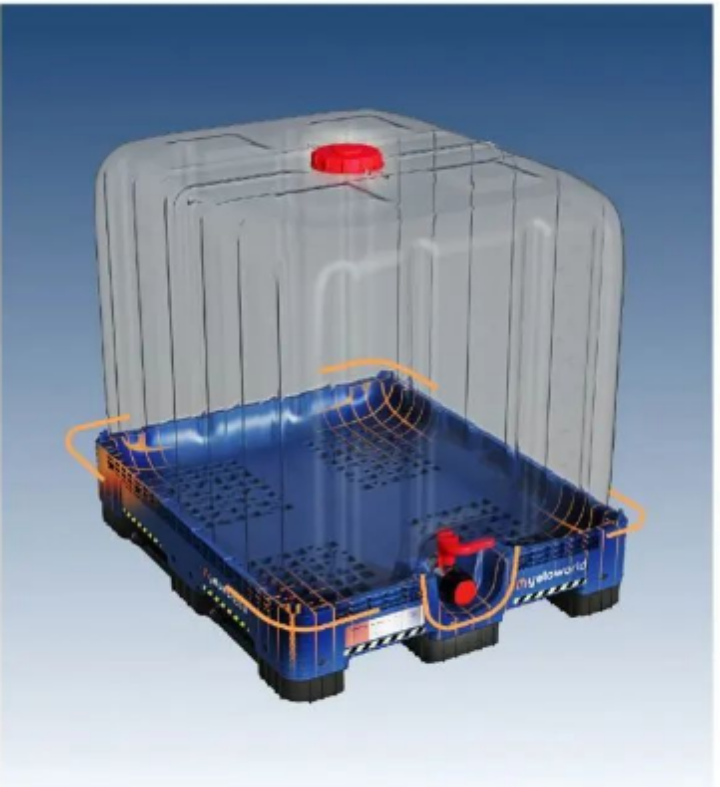

Yeloworld’s IBC (Intermediate Bulk Container) is based on the traditional design, with comprehensive upgrades in materials, structure, and performance. It features a high-density polyethylene blow-molded inner drum and an injection-molded polypropylene four-way entry pallet, equipped with RFID chips and IoT intelligent modules. It offers various operational modes to adapt to different scenarios, providing a next-generation solution for liquid packaging.

Basic Information

Dimensions: 1,200 × 1,000 × 1,155 mm

Capacity: 1,050 L

Net weight: 58 ± 2 kg

Operating temperature: -20℃ to 60℃

Filling port cover: DN150

Ball valve: DN50

Butterfly valve: DN50

Two-layer stacking height: 2,295 mm

Dynamic load stacking height: 2 layers

Static load stacking height: 4 layers

Key Features

Structural Optimization

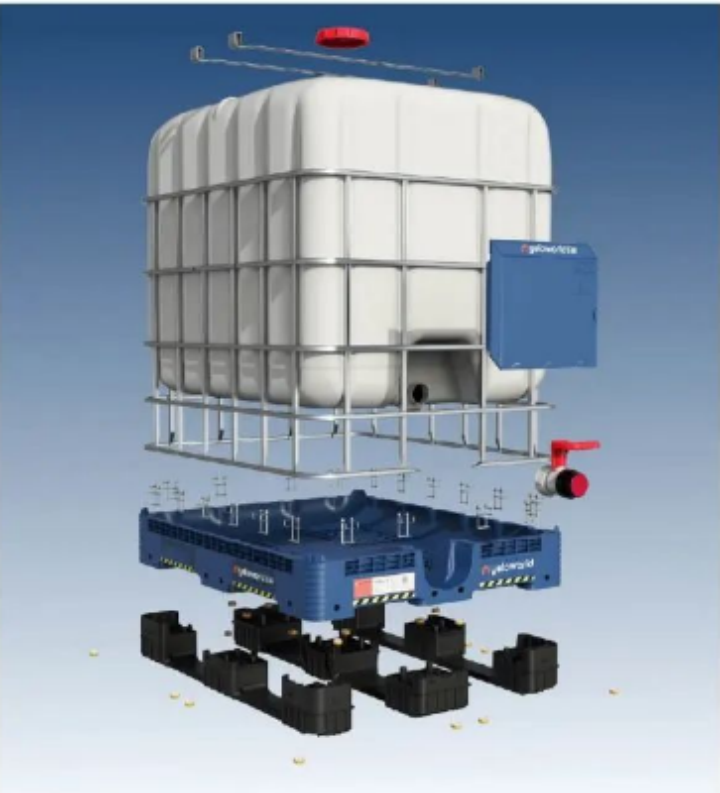

Accessories are designed for easy disassembly and replacement, ensuring quick maintenance.

Multi-directional flow design enhances drainage efficiency.

Enlarged contact surface on the base, combined with anti-skid pads for forklifts, improves stability.

Enhanced Durability

The fully enclosed metal frame and reinforced base provide secure interlocking and stacking, ensuring comprehensive safety.

The transparent base prevents water accumulation, keeping the product dry and clean.

The resilient plastic structure resists impact deformation.

Intelligent Management

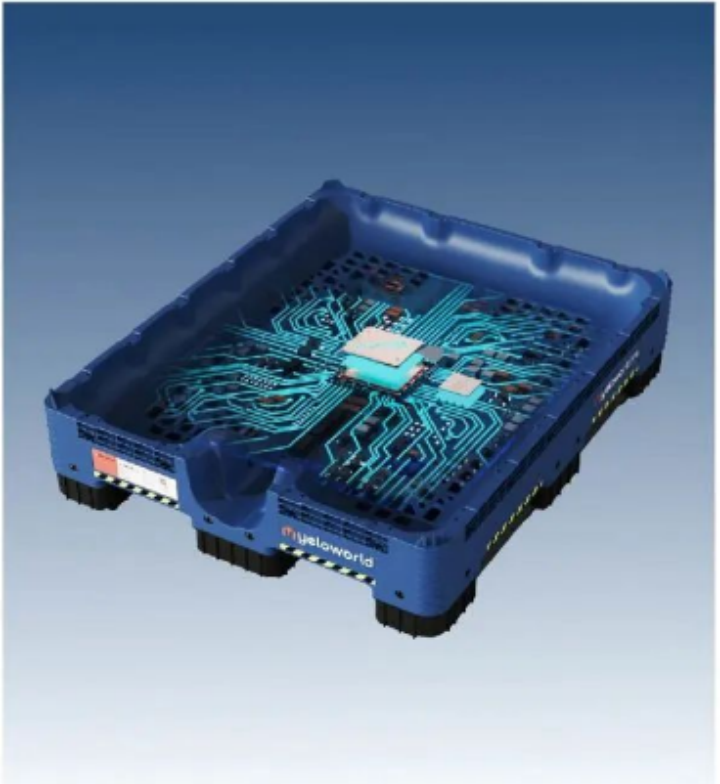

Equipped with RFID chips for tracking goods movement, meeting intelligent warehouse management needs.

Optional IoT intelligent modules allow for real-time packaging positioning and status monitoring.

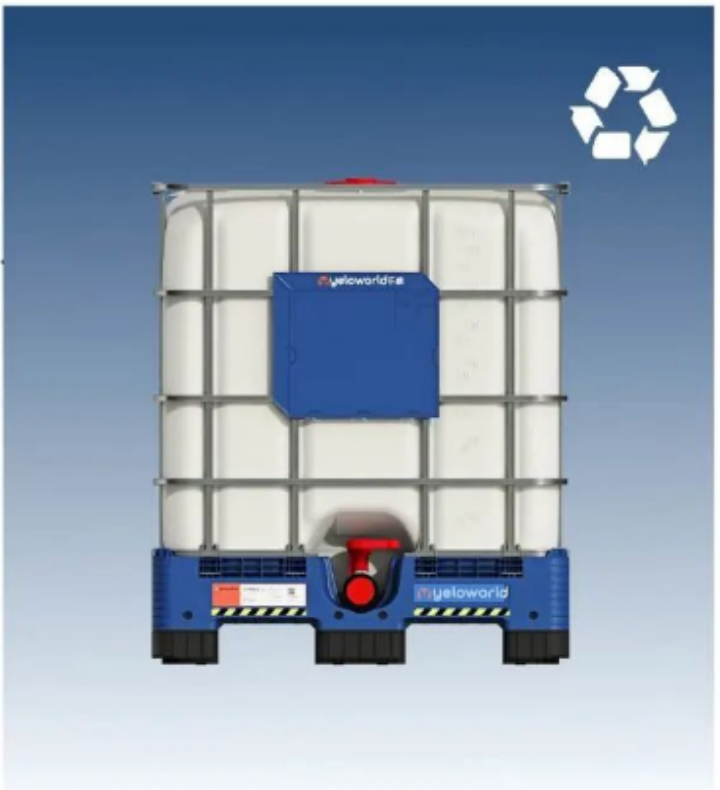

Sustainable Design

The reusable structure offers environmental benefits.

Made from recyclable plastic, it can be recycled and reused after the end of its lifecycle.

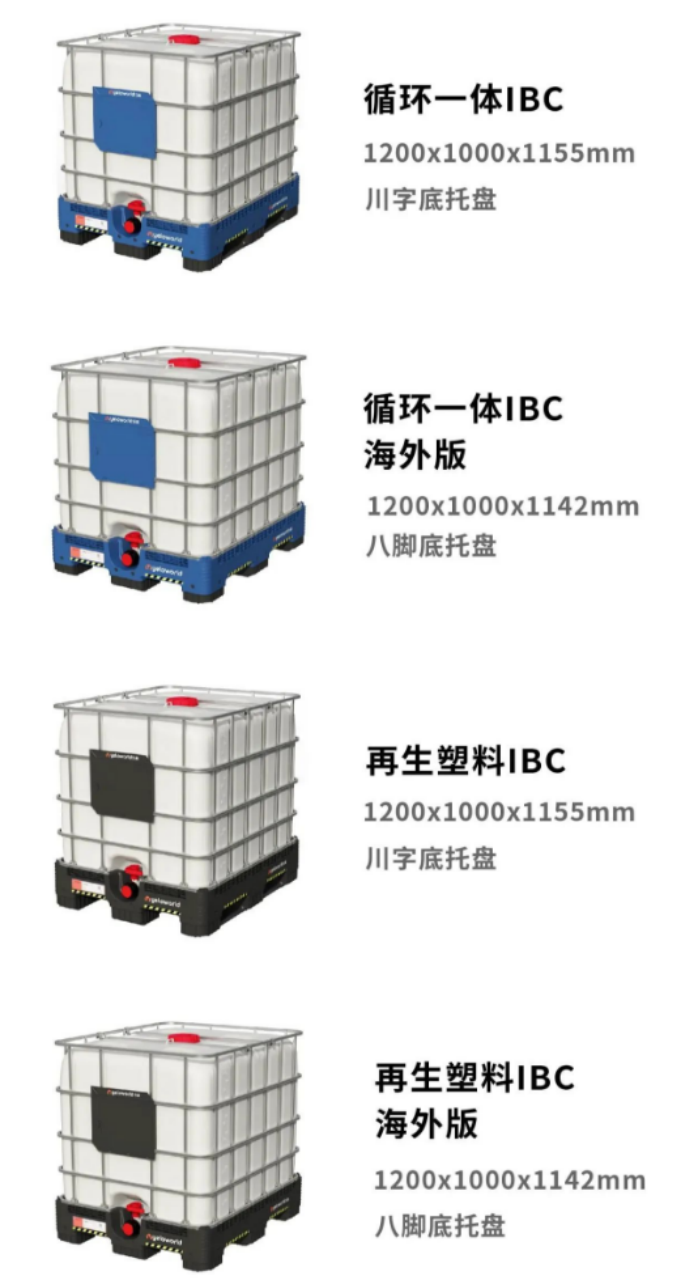

IBC Product Series

Yeloworld’s IBC series includes four models, featuring options made from virgin plastic and those predominantly from recycled plastic. The reusable IBCs only require inner drum replacement, while recycled plastic IBCs cater to enterprises with export needs, aligning with EU regulations on green plastics. Enterprises can choose a model according to their specific scenarios and requirements.
